Tank Solutions
Steel Tank Systems
Fabricated steel tanks, supports and skids for diesel, fuel and industrial storage.
Fabricated Steel Tank Systems for Industrial Storage
Where strength, larger capacity or fuel duty call for it, Falcon fabricates steel tanks with the supports, skids and fittings your installation needs — from generator diesel tanks to industrial process and storage tanks.
Steel is fabricated where it is technically suitable; where another material serves the application better, we say so. Protective coating or lining can be added to extend service life in aggressive environments.
Tank SolutionsWhat We Offer
Custom fabrication
Tanks made to your dimensions, nozzle layout and access constraints.
Diesel and fuel tanks
Generator and industrial fuel storage fabricated to the project specification.
Skids and supports
Skid-mounted and supported arrangements fabricated with the tank.
Industrial process tanks
Storage and process vessels for industrial plants where steel suits the duty.
Corrosion protection options
Industrial coating and internal lining to extend steel tank life.
Inspection and testing
Visual, dimensional and thickness checks and leak testing where applicable.
Types of Steel Tank Systems
Each configuration has its own page with the detail relevant to that type.
Fabricated Storage Tank
Custom-fabricated steel storage built to project drawings.
View type

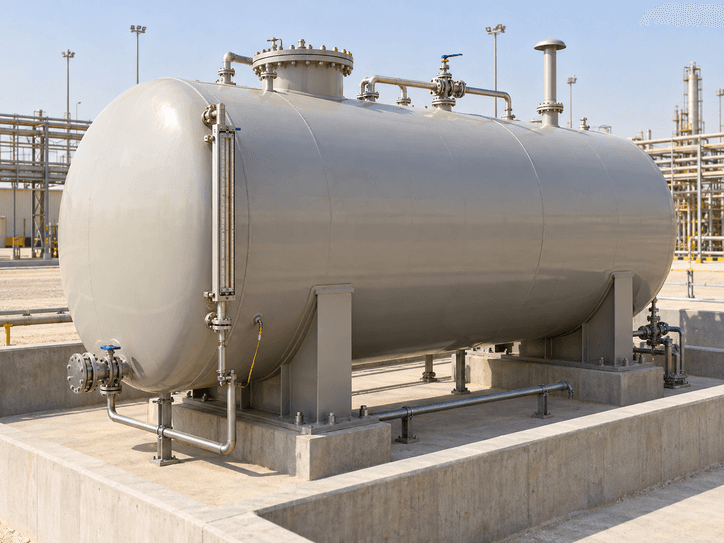

Diesel / Fuel Steel Tank
Steel construction for generator diesel and industrial fuel storage.
View type

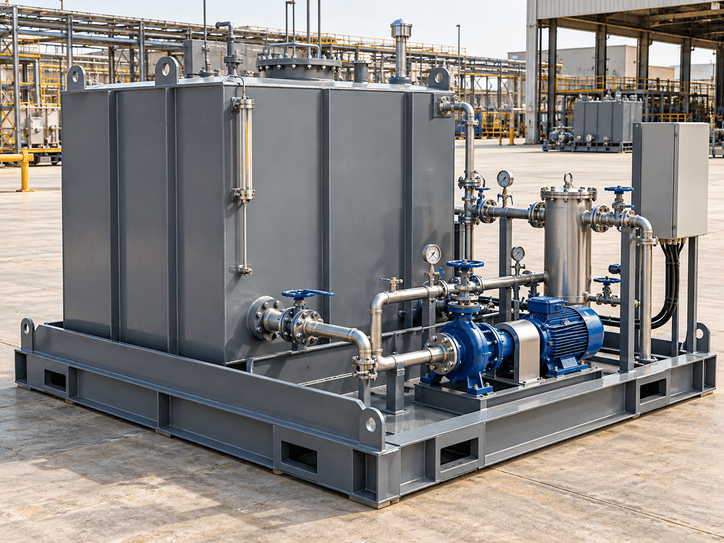

Skid-Mounted Tank System
A tank and its supporting steelwork fabricated and delivered as one transportable unit.
View typeIndustrial Process Tank
Steel vessels built for process duty within a plant, not just bulk storage.
View typeTechnical Snapshot
- Product range
- Fabricated tanks, diesel tanks and industrial tanks
- Supporting structure
- Supports, skids and custom steel fabrication
- Duty
- Diesel, fuel, water and industrial liquids where suitable
- Configurations
- Aboveground and underground where suitable
- Corrosion protection
- Coating and lining options — see Tank Restoration & Lining
- Documentation
- GA / shop drawings, inspection and testing per project specification
Where It’s Used
From Duty Review to Delivery
- 01
Review duty and site
Stored liquid, capacity, location and any client specification.
- 02
Engineer and draw
General arrangement and shop drawings issued for approval.
- 03
Fabricate and inspect
Controlled fabrication with checks at defined inspection points.
- 04
Test and deliver
Testing as applicable, then documented delivery.
Sizing
No fixed steel-tank capacity list is published. Each tank is fabricated to the project — workshop capability, code basis, QA and listing evidence are confirmed first, then nominal/working volume, dimensions, SG, temperature, support/foundation and site loads per model.
Standards & Compliance
- API 650 (13th Ed.)
- Welded oil-storage tanks within scope — verify design conditions, purchaser specification and current addenda.
- AWWA D100-21
- Welded carbon-steel tanks for water storage (not a diesel or process-tank code).
- UL 142
- Listed steel aboveground tanks for flammable/combustible liquids — claim only for the exact listed model.
A standard reference is not proof of third-party certification. Falcon states “designed and manufactured to” a standard only when it is backed by the controlled design and QA file; chemical, potable-water and underground suitability require separate product-specific evidence. Saudi/GCC approvals (SASO/SABER, Civil Defense, environmental, municipal, utility and owner approvals) are project- and product-specific.
Accessories & Fittings
Nozzle size, material, reinforcement and orientation are set in the nozzle schedule for each tank. Accessories are fitted as the service requires.
Frequently Asked Questions
When should I choose steel over FRP or polyethylene?
Steel is often chosen for larger fuel storage, high mechanical loads or where a site specification calls for it. For water, wastewater and many chemicals, FRP or polyethylene can be more corrosion-resistant. We recommend based on your application.
Can you fabricate skid-mounted tanks?
Yes. Supports, skids and custom steel fabrication are part of our steel tank systems scope.
How is corrosion handled on steel tanks?
Steel tanks can be protected with industrial coating or internal lining, and existing steel tanks can be lined or restored — see our Tank Restoration & Lining services.
